Model
P1Ean
6971390279083Price
$ 600Measurement channel
Sampling rate up to
Total hardware storage capacity
Hardware storage depth
Sampling depth up to
Measurement bandwidth
Free independent professional sampling and analysis software, Chinese / English interface switching, support win7 / 8 / 10, Linux, Mac OS operating system 10 hexadecimal, 2 hexadecimal, ASCII format data display
Normal mode sampling rate up to 500MHz, stream mode sampling depth up to 10Gsa
*Normal mode: use the internal memory as the sampling buffer, and upload the data to the computer after sampling. This mode can provide a higher sampling rate.
*Stream mode: only use the computer memory to store sampling data, and the data needs to be uploaded to the computer in real time. This mode provides a greater sampling depth.
Support more than 40 standard protocol parsing, multi-layer protocol overlay display, and more protocols support updating
P2
1-Wire
●
●
●
●
Atmel SWI
●
●
●
●
CAN
●
●
●
●
CAN-FD
X
X
●
●
DHT11/12
●
●
●
●
DMX-512
●
●
●
●
DS18B20
●
●
●
●
HDMI CEC
●
●
●
●
I2C
●
●
●
●
I2C-EEPROM
●
●
●
●
I2S/PCM
●
●
●
●
IR-NEC
●
●
●
●
IR-JVC
●
●
●
●
IR-RC5
●
●
●
●
IR-RC6
●
●
●
●
IR-Sharp
●
●
●
●
IR-SIRC
●
●
●
●
ISO7816
X
X
●
●
JTAG
●
●
●
●
LCD1602/12864
●
●
●
●
LIN
●
●
●
●
Manchester
●
●
●
●
MDIO
●
●
●
●
MIDI
●
●
●
●
MIPI-DSI LP
X
X
●
●
Modbus
●
●
●
●
Parallel
●
●
●
●
Parallel 8080
●
●
●
●
Parallel 6800
●
●
●
●
PS/2 Keyboard
●
●
●
●
QSPI-Flash
X
X
●
●
RDM
●
●
●
●
RGB-WS28xx
●
●
●
●
SDIO
●
●
●
●
SMBus
●
●
●
●
SPI
●
●
●
●
SWD
●
●
●
●
UART/RS232/485
●
●
●
●
UNI/O
●
●
●
●
USB-PD
X
X
●
●
USB LS/FS
●
●
●
●
Wiegand
●
●
●
●

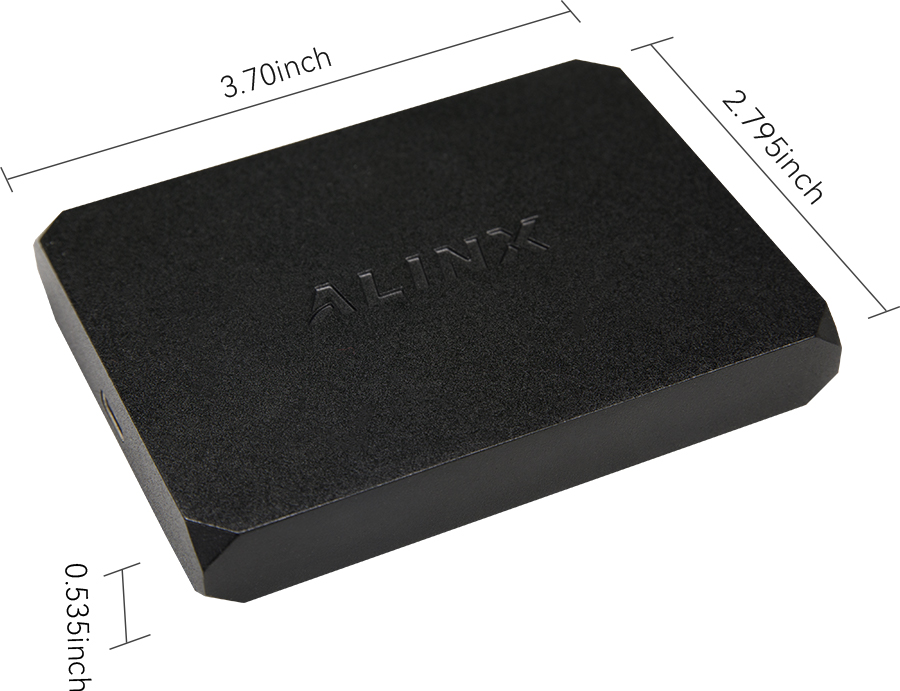

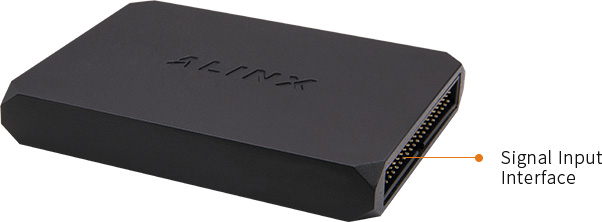

Model
P1
Number of channels
32
Maximum sampling rate
500MHz@32CH
Measurement broadband
80MHz
Minimum capturing pulse width
6.25ns
Total hardware storage capacity
4Gbits
Hardware storage depth
100M Sas
Maximum compression depth
10G Sas
Input voltage range
-50V ~ +50V
Equivalent input impedance
220kΩ, 12pF
threshold voltage
Adjustable threshold: -4V ~ +4V Threshold adjustable step: 0.01 V
Number of channels
2
Output frequency range
0.1 - 20MHz
Cycle adjustment step
10ns
Pulse width adjustment step
5ns
Pulse width adjustment step
+3.3V
Logic analyzer
1

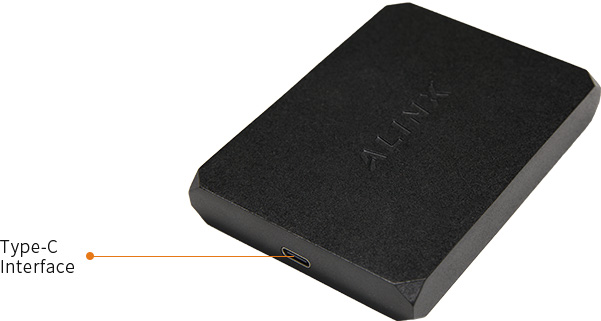

Type-C data line
1
9p cable
5
2p cable
2
Clip
36
Instructions
1
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
