KSZ9031
Model
FL9031Temperature class
-40℃~85℃Ean
6971390274606Price
$ 220
XILINX Zynq-7000 SoC XC7Z100 ARM FPGA Development Board
PANGOMICRO SoM Boards Logos Series PGL12G HDMI Output Video Image Processing
ALINX RS232 RS422 RS485 Communication interface module
XILINX Artix7 SOM FPGA Core Board XC7A35T
Development of 4-way 12bit 250MSPS AD input analog-to-digital LPC FMC subboard

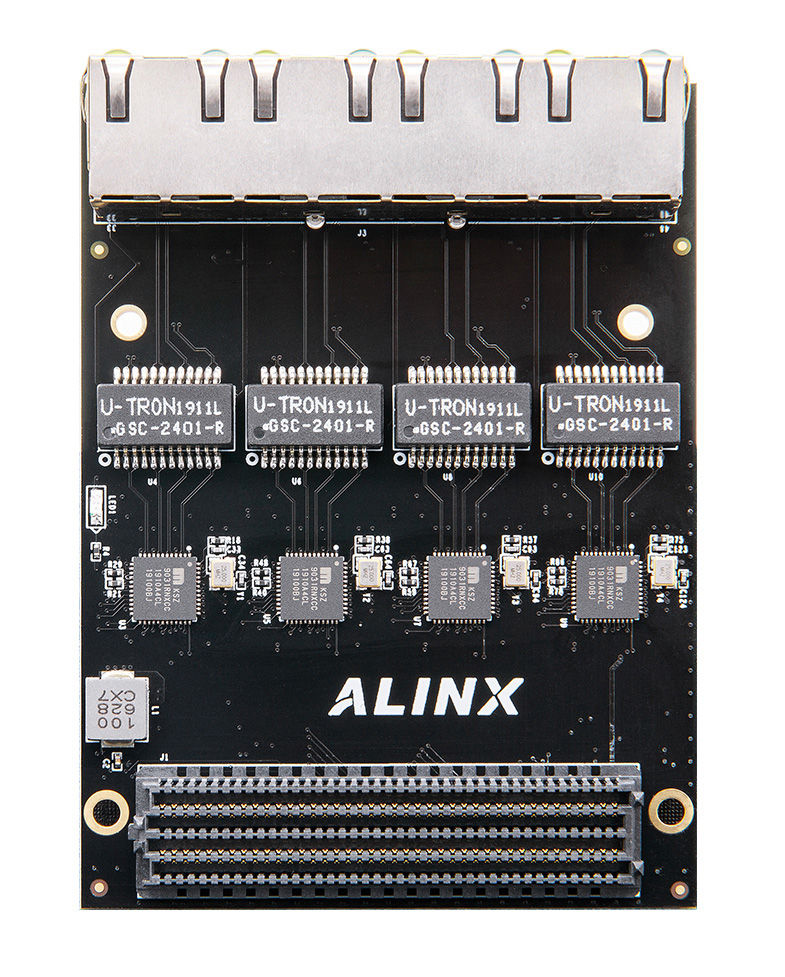

Four 1000M Ethernet Ports, Industrial Netpork Port Chip KSZ9031, RGMII Mode, Standard FMC LPC Interface
Gigabit Ethernet Chip
4 Pieces of KSZ9031
Network Interface
4
Communication Rate
Support 10 / 100 / 1000 Mbps, Adaptive
Transmit Mode
RGMII
Configuration Interface:
MDIO Interface
Working Temperature
-40°C~85°C
Form Factor
3.62 inch x 2.72 inch
Supporting FPGA Board
with FMC Connectors
Documents Provided
Schematic, FPGA Testing programs
FMC Interface
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
